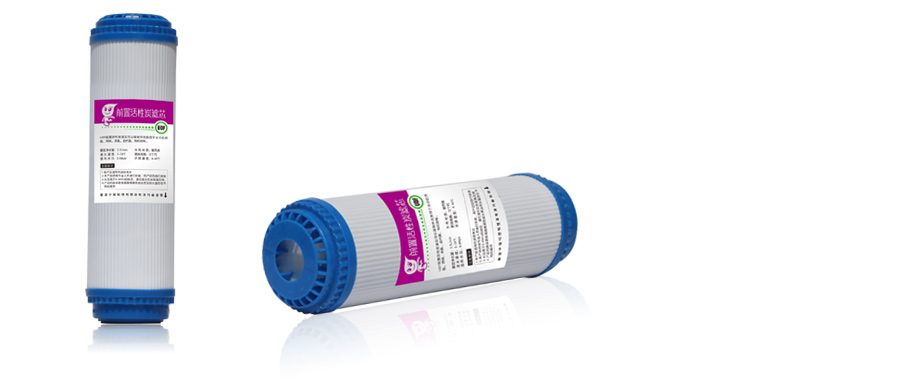

UDF=GAC particle activated-carbon filter element uses the high quality coconut shell activated-

carbon or coal activated-carbon as raw material, and the outershell is made of ABS plastic at

food grade, bonding with ultrasonic welding technology. Internally, a specially designed sponge

makes the filter materialcompacted, and the PP filter at the end can effectively prevent the tiny

particles penetration.The product is used for absorbing organic matter in water treatment,

chemical pesticide and residual chlorine, heterochrome and peculiar smell, etc.,product validity

can last 3 t0 6 months.Activated- carbon particle filter element has strong adsorption capacity,

and does not contain soluble organic matter which is harmful to human, and iswidely used in

the water treatment projects such as the group and household water purifiers, water dispensers

and power plant, petrochemical engineering. It is even better to be used in water treatment in

water-polluted urban factories, hotels, all kinds of cool and refreshing drinks.

1. Integrate all the functions such as adsorption, filtering, intercept, catalysis as a whole.
2. Resisted from acid, alkali, salt and different kinds of organic solvents.
3. High filtering precision, large flow, small pressure discrepancy, high compressing resistance

strength, large assimilative volume, non-toxic, tasteless, nosecondary pollution.
4. Convenient to install and uninstall.

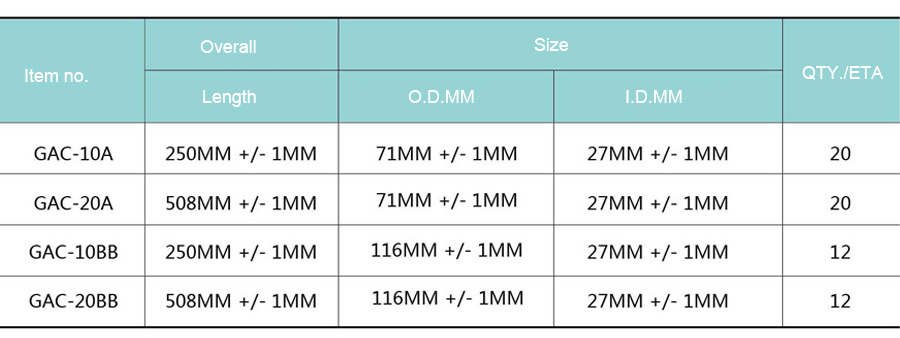

1. The total length including the thickness of the two gaskets
2. The outer diameter includes the outermost layer of non-woven fabric and nylon netsg
3. The Inner diameter is the length of the inner lid
4. Specifications can be based on customer's request
5. Material: coal, nut shell, coconut shell
6. End cover: polypropylene
7. Gasket: nitrile butadiene rubber, silicone rubbe

urface area: 800 ~ 1000
The adsorption of iodine, 900 ~ 1000 mg/g;
The adsorption quantity for benzene : 20 ~ 25%;
Four oxidation of carbon adsorption rate: 50 ~ 60%
adsorption value: 13 ~ 16 ml/g;
COD removal rate: 58.25%;
Residual chlorine removal rate: 96.83% or higher

 Work pressure drop: 0.1 ~ 0.2 KGF/cm;
The highest pressure: 7 KGF/cm;
The biggest pressure drop: 4 KGF/cm;
The highest working temperature: 60 0C;
The maximum flow: 8 l/min (water under pressure discrepancy 0.15 KGF/cm, 10 "filter)
Accuracy of l mu m ~ 10 microns, 5 microns is capable of removing more than 99% of the
10-micron particles

This product is widely used in liquid filtering, air compression and gas filter in the industry

of pure water, plating line, printed circuit board, paint, solventsdetergents, medicine liquid,

oral liquid, medical injecting liquid, beverage, alcohol, etc.
