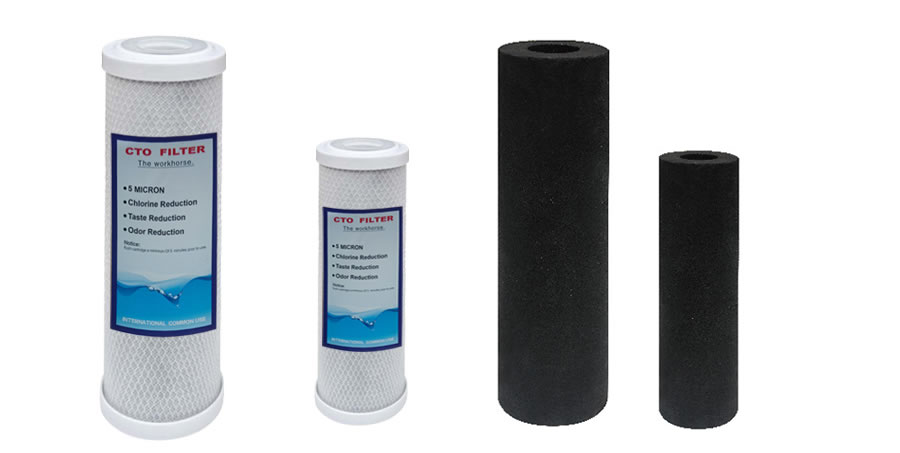

CTO sintering activated-carbon filter is composite filter by using all kinds of high-quality activated

-carbon whith 30 ~ 60 mesh and iodine value more than 1000 as material, combined with high

polymer material. Activated-carbon rods are wrapped internally and externally by a layer of non-

woven fabric to realize filtering function, the two ends of carbon core installed by soft nitrile

butadiene rubber gasket, which make the filter cartridge loaded with good sealing capability.

Sintering activated-carbon filter has strong adsorption function, and the effective filtering precision

can be within 0.1 ~ 10 microns. It is widely used in watertreatment equipment to remove residual

chlorine, chemical pesticides, color, smell, and filter tiny impurities, etc.

1. Integrate all the functions such as adsorption, filtering, intercept, catalysis as a whole.
2. Resisted from acid, alkali, salt and different kinds of organic solvents.
3. High filtering precision, large flow, small pressure discrepancy, high compressing resistance

strength, large assimilative volume, non-toxic, tasteless, nosecondary pollution.
4. Convenient to install and uninstall.

Surface area: 800 ~ 1000 rrf/g;
The adsorption of iodine, 900 ~ 1000 mg/g;
The adsorption quantity for benzene : 20 ~ 25%;
Four oxidation of carbon adsorption rate: 50 ~ 60%
adsorption value: 13 ~ 16 ml/g;
COD removal rate: 58.25%;
Residual chlorine removal rate: 96.83% or higher

Work pressure drop: 0.1 ~ 0.2 KGF/cm;
The highest pressure: 7 KGF/cm;
The biggest pressure drop: 4 KGF/cm;
The highest working temperature: 60 0C;
The maximum flow: 8 l/min (water under pressure discrepancy 0.15 KGF/cm, 10 'filter)
Accuracy of l mu m ~ 10 microns, 5 microns is capable of removing more than 99% of

 the lO-micron particles
