PP filter is 100% food g rade PP (polypropylene PP) superfine fiber thermal entanglement,

 fiber in random space form three-dimensional pore structure, pore diameter gradient

distribution along the filtrate flow, integrating surface, deep, coarse filtration, can intercept

different particle size of impurities. Filter precision range l-100 microns, the flux is equal accu

racy more than l.5 times of honeycomb filter, a uniform apertu re, hyd rophobic deep filter

structure, and has high filtration efficiency, excellent characteristics of acid and alkali resistance.

Can effectively remove the suspended solids in the fluid,  pa rticles, rust and other impurities.

Widely used in drinking water, food and related water treatment system, etc..

The aperture bore diameter of PP melt-bolt filter element is compact and uniform with high

 filtering efficiency. The particle smaller than apertu re bore could also be blocked due to

particle bridging phenomenon in the aperture bore of PP melt-bolt filter element, which make

the filter efficiency rate reach to over 98%. And as a result, the cleanness extent for PP

melt-bolt filter element is very high and it will not cause water pollution and could resist

corrosion of organic solvent and chemical reagent such as acid and alkali.

PP filter cartridge is made of melted lOO%food grade polypropylene.Comparing with PP string

filter cartridge,it has better chemical durability and longer service life.Various different length

and filtrating rateare available for your choice.

Filtration rate : 1～100μm；

Standard length : 5″～70″；

Diameter: 16mm～200 mm;

Inner diameter: 12mm～120 mm( Commonly used specifications 28 mm )

Pressure difference: 3～5kgf/c㎡；

The highest temperature: 65℃～90℃

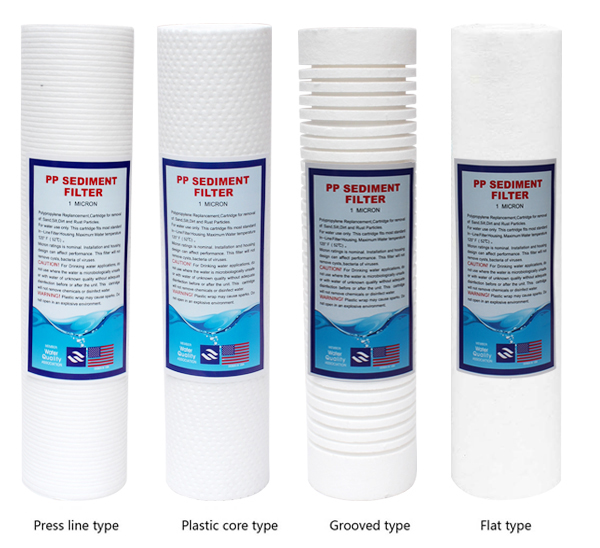

Category : Flat type,Grooved type,Press line type,Plastic core type

NOTE : Special specification and nonstandard length depend.

The products are applied to drinking water, domestic water, security system for ultrapure water

equipment and the liquid filtering in the industry of electricity, petroleum, chemistry, medicine,

and food, such as flooding water in oil field, chemical liquor, electroplate liquid.
